UBE CO2 Separator for Biogas Upgrading

Less waste for the earth, more energy for the future.
UBE membranes GREENIZE us.

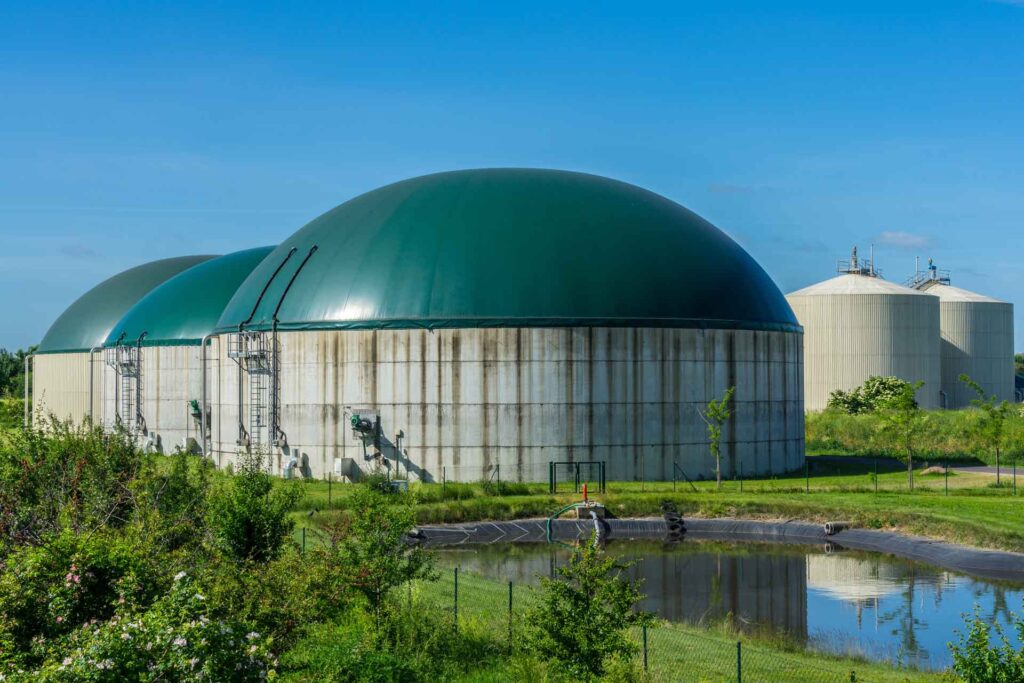

148

plants equipped for biogas upgrading

worldwide

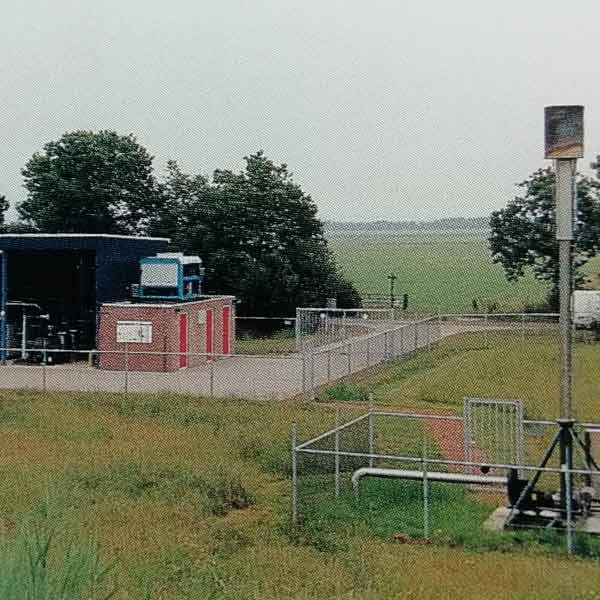

Ube corporation europe's first gas separation membrane installation

Since

1989

The first UBE CO2 separators were installed in Germany

Lit light bulb held by a hand on a grass background

Pure & Simple

Affordable cost and competitive advantages to you

UBE membranes have been working in many fields for over 35 years.

UBE started its basic research into materials for gas separation membranes in 1978, and we joined a Japanese national project aimed at developing a new chemosynthesis process and contributed our gas separation technology to it.
UBE installed the first membranes for hydrogen recovery, which were launched on the basis of our extensive research, in oil refinery plant for mass production in 1986.
UBE extended its line-up of membranes and applications and installed the first UBE CO2 Separator for purifying biogas in 1989. UBE is continually improving the superior performance of its membranes.

Biogas is a RENEWABLE energy produced mainly from organic residues which can be energy crops, plant by-products, animal by-products, biowaste from households, etc., mainly comprising CH4 and CO2. UBE’s CO2 Separator purifies the biogas, converting it into Biomethane (CH4) and efficiently collecting CO2.

UBE CO2 Separator has superior productivity, selectivity & durability

UBE has extensive knowledge in polymer chemistry as a chemical company with long history, UBE infuses its CO2 separator with our latest polyimide technologies and produces from a monomer for polymerizing polyimide as the fiber membrane material.

Features

Biomethane purified up to 99,5%
High selectivity, biomethane recovery up to 99,8%
Compact < Reduced amount of membranes
Low energy consumption

MORE:

How it works

Structure of UBE CO2 Separator

UBE CO2 Separator contains hollow fiber membranes. When compressed biogas flows into the hollow fibers, molecules with higher permeability rates for the membranes, such as CO2, H2O, O2, and H2S, pass through the membranes earlier than gases with lower permeability rates, such as CH4. The result of the differences in permeability rates is that highly purified CH4 is obtained after passing through UBE CO2 Separator.

Infographic of the operation of a gas separation membrane

Efficient Biogas Upgrading to Biomethane

UBE offers several membrane sizes to suit your project. Our CO2 Separator line up covers pilot projects and industrial requirements.

UBE CO2 Separator line up

Rounded new blue icon
MODEL Max. Operating Conditions Weight (kg) Dimensions (mm)
HIGH PRODUCTIVITY HIGH SELECTIVITY
HOUSING TYPES CO-0302SES 60ºC 10barg 1.7
CO-C07F CO-C07FS 60ºC 14barg 4.2
CO-510F CO-510FS 60ºC 14barg 16
CARTRIDGE TYPES CC-1610NFH CC-1610SEH 60ºC 24barg 19
CO-810FC CO-810FSC 60ºC 24barg 23
table with technical data of interest on gas separation membranes

Other Membranes

UBE also offers other kinds of gas separation membranes

UBE gas humidifier for hydrogen fuel cells

UBE Membrane
Dryer

UBE N2
Separator

UBE Organic Solvent Dehydration Membrane

Efficiently collect hydrogen and helium from mixitured gases, likewise petroleum refineries and chemical industry off-gas.

Environmentally friendly, maintenance-free air dryer

Generating up to 99.9% nitrogen simply by supplying compressed air.

Excellent dehydration power in azeotropic compositions with water! Concentration of water-containing solvent to 99% or higher by membrane separation.

Other Membranes

UBE also offers other kinds of gas separation membranes

UBE Hydrogen Separation Membrane

Efficiently collect hydrogen and helium from mixitured gases, likewise petroleum refineries and chemical industry off-gas.

UBE Organic Solvent Dehydration Membrane

Excellent dehydration power in azeotropic compositions with water! Concentration of water-containing solvent to 99% or higher by membrane separation.

UBE Membrane
Dryer

Environmentally friendly, maintenance-free air dryer

UBE N2
Separator

Generating up to 99.9% nitrogen simply by supplying compressed air.
