UBE N₂ SEPARATOR

The Smart way to get Nitrogen (up to 99.9%) from air.

Features

HIGH Selectivity
up to 99.9% Nitrogen

HIGH Productivity
reduced number of modules

Toughness
maintenance free

UBE membranes have been working in many fields for over 35 years.

UBE has extensive knowledge in polymer chemistry as a chemical company with long history, UBE infuses its N2 separator with our latest polyimide technologies and produces from a monomer for polymerizing polyimide as the fiber membrane material.

How it works

Air on the earth contains 78% Nitrogen and 21% Oxygen, We can obtain enriched Nitrogen from the air surrounding you by using UBE’s N2 Separator.

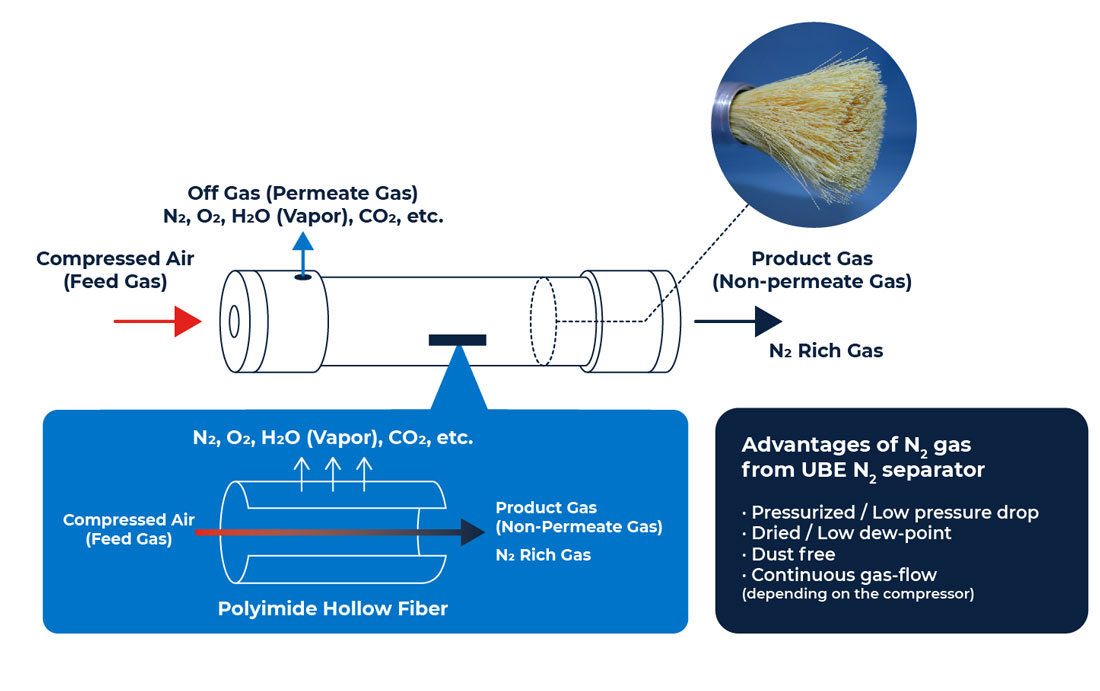

UBE N₂ Separator contains hollow fiber membranes. H₂O, O₂, CO₂ permeate faster than N₂. By flowing compressed air into the hollow fiber membrane, such highly permeable molecules go though the membrane first, and slowly permeable molecule, N₂, then remains at the Product gas side. The product gas can be N₂ purified up to 99.9% and very dried (low-dew point).

Module size & Grade name


	TYPE	LENGTH						Housing Type
		01	02	04	05	07	10
		235mm	360mm	490mm	610mm	800mm	1080-1110mm
Diameter (Bodypipe)	B type (2″)	NM-B01	NM-B02	–	NM-B05	–	–	Complete type (with the housing)
	B type (2″)	–	–	–	NM-B05F	–	–
	C type (“3”)	–	–	NM- 0804-NF	NM- C05	NM- C07F	NM- C10F
	5 inch	–	–	–	–	–	NM-510F
	7 inch	–	–	–	–	–	NM-710HP
	8 inch	–	–	–	–	–	NM-810FC	Cartridge type

		LENGTH
	TYPE	01	02	04	05	07	10	Housing Type
		235mm	360mm	490mm	610mm	800mm	1080-1110mm
		NM-B01	NM-B02	-	NM-B05	-	-
	B type (2")	-	-	-	NM-B05F	-	-
Diameter (Bodypipe)	C type (3")	-	-	NM-0804-NF	NM-C05	NM-C07F	NM-C10F	Complete type (with the housing)
	5 inch	-	-	-	-	-	NM-510F
	7 inch	-	-	-	-	-	NM-710HP
	8 inch	-	-	-	-	-	NM-810FC	Cartridge type

Module capacity (N₂productivity)

Nm3/h by size @7barG, 25ºC, purifying 97% Nitrogen


	TYPE	LENGTH						Housing Type
		01	02	04	05	07	10
		235mm	360mm	490mm	610mm	800mm	1080-1110mm
Diameter (Bodypipe)	B type (2″)	0.14	0.27	–	0.65	–	–	Complete type (with the housing)
	B type (2″)	–	–	–	1.10	–	–
	C type (“3”)	–	–	2.30	1.40	3.10	4.70
	5 inch	–	–	–	–	–	22.00
	7 inch	–	–	–	–	–	41.00
	8 inch	–	–	–	–	–	45.00	Cartridge type

		LENGTH
	TYPE	01	02	04	05	07	10	Housing Type
		235mm	360mm	490mm	610mm	800mm	1080-1110mm
		0.14	0.27	-	0.65	-	-
	B type (2")	-	-	-	1.10	-	-
Diameter (Bodypipe)	C type (3")	-	-	2.30	1.40	3.10	4.70	Complete type (with the housing)
	5 inch	-	-	-	-	-	22.00
	7 inch	-	-	-	-	-	41.00
	8 inch	-	-	-	-	-	45.00	Cartridge type
